Model |

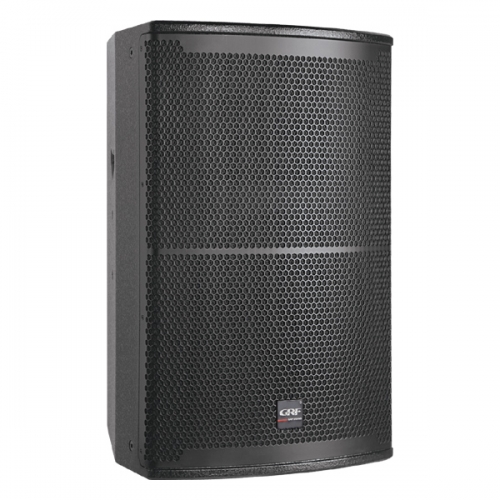

AF15+ |
| Frequency Response | 50Hz~18KHz(±3dB) |
| Component | LF:1x15"(3"voice coil), HF:1x1"(13"voice coil) |
|
Rated Power |
400W AES |
| Recommended Amplifier | 800W into 8ohms |
| Sensitivity | 96dB |
| Maximum SPL | 125dB/1m |
| Nominal Impedance | 8 ohms |
| Dispersion | 90°Hx60°V |
| Enclosure | Birch plywood |
| Finish | Black ,scrath paint |
| Grill | Steel grill with black foam |
| Connector | 2xNeutrik NL 4 |
| Dimension(HWD) | 690x430x500mm |
| N.W. | 29.6Kg |
